BFG325XR - NPN 14 GHz wideband transistor

Download the BFG325XR datasheet PDF. This datasheet also covers the BFG325W variant, as both devices belong to the same npn 14 ghz wideband transistor family and are provided as variant models within a single manufacturer datasheet.

Description

NPN silicon planar epitaxial transistor in a 4-pin dual-emitter SOT143R plastic package.

Features

  • High power gain.
  • Low noise figure.
  • High transition frequency.
  • Gold metallization ensures excellent reliability 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BFG325W_NXPSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BFG325XR
Manufacturer NXP Semiconductors
File Size 190.33 KB
Description NPN 14 GHz wideband transistor
Datasheet download datasheet BFG325XR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BFG325 NPN 14 GHz wideband transistor NXP
BFG325W-XR NPN 14 GHz wideband transistor NXP
BFG31 PNP 5GHz wideband transistor NXP
BFG310W NPN 14 GHz wideband transistor NXP
BFG310XR NPN 14 GHz wideband transistor NXP

Other Datasheets by NXP Semiconductors

Part Number Description
BFG91A NPN 6 GHZ WIDEBAND TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

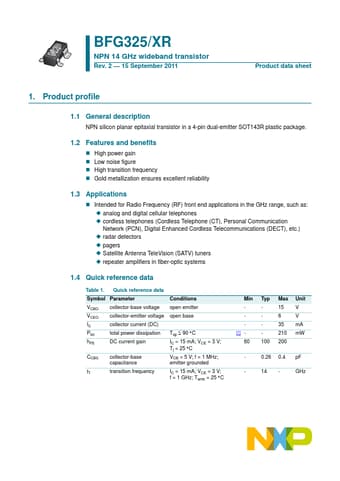

BFG325/XR NPN 14 GHz wideband transistor Rev. 2 — 15 September 2011 Product data sheet 1. Product profile 1.1 General description NPN silicon planar epitaxial transistor in a 4-pin dual-emitter SOT143R plastic package. 1.2 Features and benefits  High power gain  Low noise figure  High transition frequency  Gold metallization ensures excellent reliability 1.3 Applications  Intended for Radio Frequency (RF) front end applications in the GHz range, such as:  analog and digital cellular telephones  cordless telephones (Cordless Telephone (CT), Personal Communication Network (PCN), Digital Enhanced Cordless Telecommunications (DECT), etc.)  radar detectors  pagers  Satellite Antenna TeleVision (SATV) tuners  repeater amplifiers in fiber-optic systems 1.
