AA005-02, AA002-02 Analog Magnetic Sensors

NVE

Description

AA/AB-Series Analog Magnetic Sensors AA/AB-Series Analog Magnetic Sensors Equivalent Circuit V+ (Supply) OUT- OUT+ V- (GND) Idealized Transfer F.
NVE’s analog GMR sensors have high sensitivity, excellent temperature stability, and small size.

📥 Download Datasheet

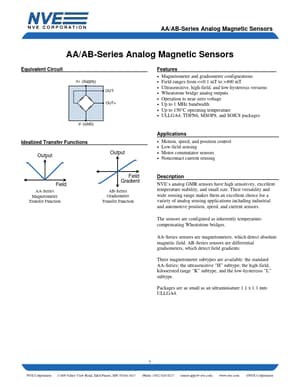

AA005-02 Datasheet Preview — This datasheet PDF includes multiple part numbers: AA005-02, AA002-02. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AA005-02, AA002-02
Manufacturer: NVE
File Size: 637.93 KB
Datasheet: AA002-02-NVE.pdf
Description: Analog Magnetic Sensors
Note: This datasheet PDF includes multiple part numbers: AA005-02, AA002-02.
Please refer to the document for exact specifications by model.

Features

* Magnetometer and gradiometer configurations
* Field ranges from

Applications

* Motion, speed, and position control
* Low-field sensing
* Motor commutator sensors
