NTE54 - Silicon Complementary Transistors

Product Overview

NTE

NTE54 Silicon Complementary Transistors by NTE - Datasheet Preview — Datasheet preview – NTE54

Datasheet Details

Part number	NTE54
Manufacturer	NTE
File Size	23.30 KB
Description	Silicon Complementary Transistors
Datasheet	NTE54 Datasheet
Additional preview pages of the NTE54 datasheet.

Product details

Description

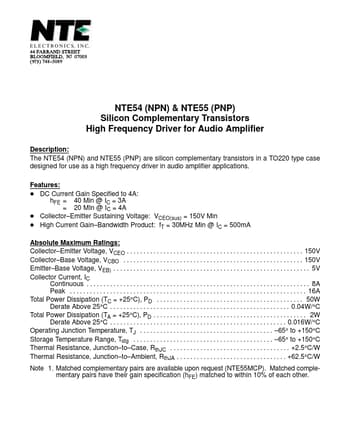

The NTE54 (NPN) and NTE55 (PNP) are silicon complementary transistors in a TO220 type case designed for use as a high frequency driver in audio amplifier applications.

Features

D DC Current Gain Specified to 4A: hFE = 40 Min @ IC = 3A = 20 MIn @ IC = 4A D Collector.
Emitter Sustaining Voltage: VCEO(sus) = 150V Min D High Current Gain.
Bandwidth Product: fT = 30MHz Min @ IC = 500mA Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO.
. . . 150V Collector.
Base Voltage, VCBO.
