NTE5267A - 50 Watt Zener Diodes

Download the NTE5267A datasheet PDF. This datasheet also covers the NTE5240A variant, as both devices belong to the same 50 watt zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • D Zener Voltage 3.9 to 200V D Low Zener Impedance D Highly Reliable and Rugged D Also Available in Reverse Polarity (NTE5240AK thru NTE5296AK) Maximum Ratings: Operating Junction Temperature Range, Topr.
  • .
  • 65° to +175°C Storage Temperature Range, Tstg.
  • .
  • 65° to +175°C DC Power Dissipation, PD.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NTE5240A_NTEElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NTE5267A
Manufacturer NTE Electronics (defunct)
File Size 31.83 KB
Description 50 Watt Zener Diodes
Datasheet download datasheet NTE5267A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE53006 Silicon Bridge Rectifier NTE Electronics
NTE53010 Silicon Bridge Rectifier NTE Electronics
NTE53016 Silicon Bridge Rectifier NTE Electronics
NTE53020 Silicon Bridge Rectifier NTE Electronics
NTE5390 (NTE5390 - NTE5394) Silicon Bridge Rectifier NTE Electronics

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE5260A 50 Watt Zener Diodes
NTE5261A 50 Watt Zener Diodes
NTE5262A 50 Watt Zener Diodes
NTE5263A 50 Watt Zener Diodes
NTE5264A 50 Watt Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

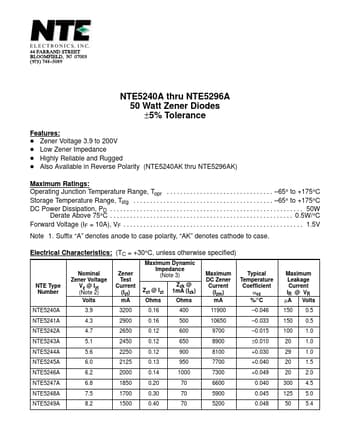

NTE5240A thru NTE5296A 50 Watt Zener Diodes ±5% Tolerance Features: D Zener Voltage 3.9 to 200V D Low Zener Impedance D Highly Reliable and Rugged D Also Available in Reverse Polarity (NTE5240AK thru NTE5296AK) Maximum Ratings: Operating Junction Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +175°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +175°C DC Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W Derate Above 75°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5W/°C Forward Voltage (IF = 10A), VF . . .
