NTE517 - Silicon High Voltage Plastic Rectifier

Product Overview

NTE

📥 Download Datasheet

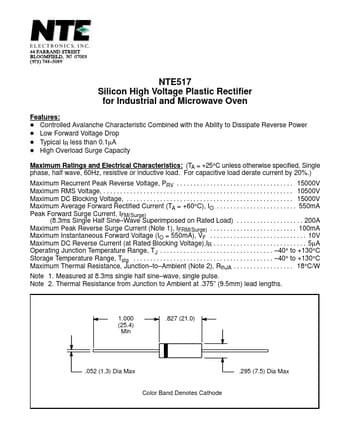

NTE517 Silicon High Voltage Plastic Rectifier by NTE - Datasheet Preview — Datasheet preview – NTE517

Datasheet Details

Part number	NTE517
Manufacturer	NTE
File Size	17.20 KB
Description	Silicon High Voltage Plastic Rectifier
Datasheet	NTE517 Datasheet
Additional preview pages of the NTE517 datasheet.

Product details

Features

D Controlled Avalanche Characteristic Combined with the Ability to Dissipate Reverse Power D Low Forward Voltage Drop D Typical IR less than 0.1µA D High Overload Surge Capacity Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified, Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. ) Maximum Recurrent Peak Reverse Voltage, PRV.
15000V Maximum RMS Vol.
