NTE5010T1 - (NTE5010T1 - NTE5021T1) Zener Diode

Product Overview

NTE

📥 Download Datasheet

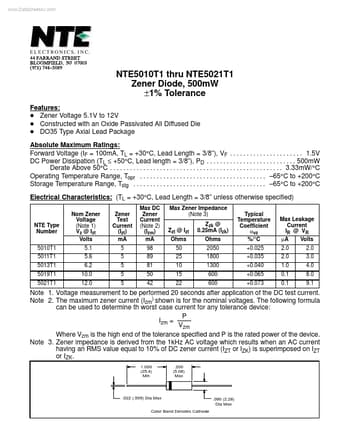

NTE5010T1 (NTE5010T1 - NTE5021T1) Zener Diode by NTE - Datasheet Preview — Datasheet preview – NTE5010T1

Datasheet Details

Part number	NTE5010T1
Manufacturer	NTE
File Size	44.86 KB
Description	(NTE5010T1 - NTE5021T1) Zener Diode
Datasheet	NTE5010T1 Datasheet
Additional preview pages of the NTE5010T1 datasheet.

Product details

Features

D Zener Voltage 5.1V to 12V D Constructed with an Oxide Passivated All Diffused Die D DO35 Type Axial Lead Package Absolute Maximum Ratings: Forward Voltage (IF = 100mA, TL = +30°C, Lead Length = 3/8”), VF.
. . 1.5V DC Power Dissipation (TL ≤ +50°C, Lead length = 3/8”), PD.
. . 500mW Derate Above 50°C.
. . 3.33mW/°C Operating Tem.
