NTE5002A - (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance

Download the NTE5002A datasheet PDF. This datasheet also covers the NTE5000A variant, as both devices belong to the same (nte5000a - nte5060a) zener diode / 1/2 watt 5% tolerance family and are provided as variant models within a single manufacturer datasheet.

Features

  • D Zener Voltage 2.4 to 200V D DO35 Package Maximum Ratings: Operating Junction Temperature Range, Topr.
  • .
  • 65° to +200°C Storage Temperature Range, Tstg.
  • .
  • 65° to +200°C DC Power Dissipation, PD.
  • . 500mW Derate Above 75°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NTE5000A_NTEElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NTE5002A
Manufacturer NTE Electronics (defunct)
File Size 26.49 KB
Description (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
Datasheet download datasheet NTE5002A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE53006 Silicon Bridge Rectifier NTE Electronics
NTE53010 Silicon Bridge Rectifier NTE Electronics
NTE53016 Silicon Bridge Rectifier NTE Electronics
NTE53020 Silicon Bridge Rectifier NTE Electronics
NTE5390 (NTE5390 - NTE5394) Silicon Bridge Rectifier NTE Electronics

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE5000A Zener Diode
NTE5001A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
NTE5003A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
NTE5004A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance
NTE5005A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

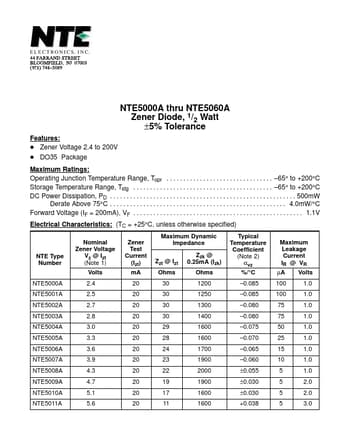

NTE5000A thru NTE5060A Zener Diode, 1/2 Watt ±5% Tolerance Features: D Zener Voltage 2.4 to 200V D DO35 Package Maximum Ratings: Operating Junction Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +200°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +200°C DC Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW Derate Above 75°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0mW/°C Forward Voltage (IF = 200mA), VF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.
