NTE337 - Silicon NPN Transistor

Product Overview

NTE

Part number	NTE337
Manufacturer	NTE
File Size	22.96 KB
Description	Silicon NPN Transistor
Datasheet	NTE337 Datasheet

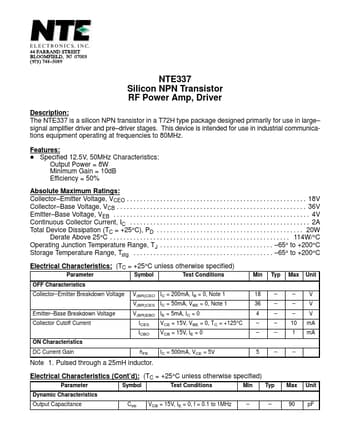

Additional preview pages of the NTE337 datasheet.

The NTE337 is a silicon NPN transistor in a T72H type package designed primarily for use in large signal amplifier driver and pre driver stages.

D Specified 12.5V, 50MHz Characteristics: Output Power = 8W Minimum Gain = 10dB Efficiency = 50% Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO.
. . . . 18V Collector.
Base Voltage, VCB.
. . 36V Emitter.
Base Voltage, VEB.
