NTE3101 - Photon Coupled Interrupter Module

Product Overview

NTE

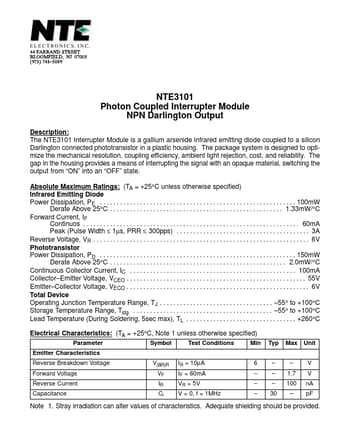

NTE3101 Photon Coupled Interrupter Module by NTE - Datasheet Preview — Datasheet preview – NTE3101

Datasheet Details

Part number	NTE3101
Manufacturer	NTE
File Size	20.57 KB
Description	Photon Coupled Interrupter Module
Datasheet	NTE3101 Datasheet
Additional preview pages of the NTE3101 datasheet.

Product details

Description

The NTE3101 Interrupter Module is a gallium arsenide infrared emitting diode coupled to a silicon Darlington connected phototransistor in a plastic housing.
