NTE3085 - Optoisolator

Product Overview

NTE

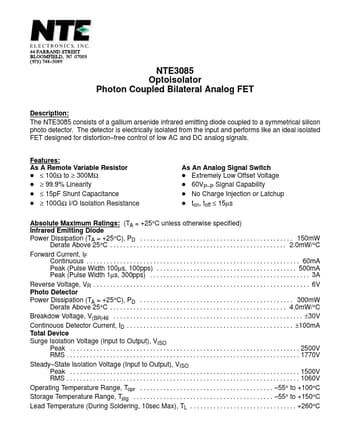

NTE3085 Optoisolator by NTE - Datasheet Preview — Datasheet preview – NTE3085

Datasheet Details

Part number	NTE3085
Manufacturer	NTE
File Size	24.51 KB
Description	Optoisolator
Datasheet	NTE3085 Datasheet
Additional preview pages of the NTE3085 datasheet.

Product details

Description

The NTE3085 consists of a gallium arsenide infrared emitting diode coupled to a symmetrical silicon photo detector. free control of low AC and DC analog signals.

Features

As A Remote Variable Resistor D ≤ 100Ω to ≥ 300MΩ D ≥ 99.9% Linearity D ≤ 15pF Shunt Capacitance D ≥ 100GΩ I/O Isolation Resistance As An Analog Signal Switch D Extremely Low Offset Voltage D 60VP.
P Signal Capability D No Charge Injection or Latchup D ton, toff ≤ 15µs Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Infrared Emitting Diode Power Dissipation (TA = +25°C), PD.
. 150mW Derate.
