NTE2061 - Integrated Circuit PMOS LSI Alarm Clock

Product Overview

NTE

Part number	NTE2061
Manufacturer	NTE
File Size	25.31 KB
Description	Integrated Circuit PMOS LSI Alarm Clock
Datasheet	NTE2061 Datasheet

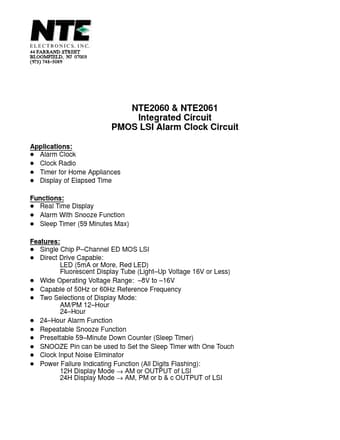

Additional preview pages of the NTE2061 datasheet.

D Single Chip P.
Channel ED MOS LSI D Direct Drive Capable: LED (5mA or More, Red LED) Fluorescent Display Tube (Light.
Up Voltage 16V or Less) D Wide Operating Voltage Range:.
8V to.
16V D Capable of 50Hz or 60Hz Reference Frequency D Two Selections of Display Mode: AM/PM 12.
Hour 24.
Hour D 24.
Hour Alarm Function D Repeatable Snooze Function D Presettable 59.
Minute Down Counter (Sleep Timer) D SNOOZE Pin can be used to Set the Sleep.
