NTE2022 - Integrated Circuit 8-Digit/Segment Fluorescent Display Driver

Product Overview

NTE

NTE2022 Integrated Circuit 8-Digit/Segment Fluorescent Display Driver by NTE - Datasheet Preview — Datasheet preview – NTE2022

Datasheet Details

Part number	NTE2022
Manufacturer	NTE
File Size	24.12 KB
Description	Integrated Circuit 8-Digit/Segment Fluorescent Display Driver
Datasheet	NTE2022 Datasheet

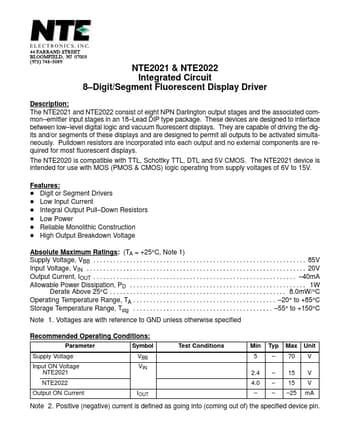

Additional preview pages of the NTE2022 datasheet.

Product details

Description

The NTE2021 and NTE2022 consist of eight NPN Darlington output stages and the associated common emitter input stages in an 18 Lead DIP type package. level digital logic and vacuum fluorescent displays.

Features

D Digit or Segment Drivers D Low Input Current D Integral Output Pull.
Down Resistors D Low Power D Reliable Monolithic Construction D High Output Breakdown Voltage Absolute Maximum Ratings: (TA = +25°C, Note 1) Supply Voltage, VBB.
. . . . 85V Input Voltage, VIN.
. 20.
