NTE1799 - Integrated Circuit Electronics Switch

Product Overview

NTE

NTE1799 Integrated Circuit Electronics Switch by NTE - Datasheet Preview — Datasheet preview – NTE1799

Datasheet Details

Part number	NTE1799
Manufacturer	NTE
File Size	27.94 KB
Description	Integrated Circuit Electronics Switch
Datasheet	NTE1799 Datasheet

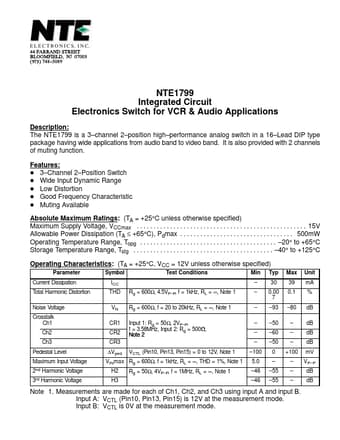

Additional preview pages of the NTE1799 datasheet.

Product details

Description

The NTE1799 is a 3 channel 2 position high performance analog switch in a 16 Lead DIP type package having wide applications from audio band to video band.

Features

D 3.
Channel 2.
Position Switch D Wide Input Dynamic Range D Low Distortion D Good Frequency Characteristic D Muting Available Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage, VCCmax.
. 15V Allowable Power Dissipation (TA ≤ +65°C), Pdmax.
. . . . 500mW Operating Temperature Range, Topg.
