NTE1674 - Integrated Circuit TV Vertical Deflection

Product Overview

NTE

Part number	NTE1674
Manufacturer	NTE
File Size	26.94 KB
Description	Integrated Circuit TV Vertical Deflection
Datasheet	NTE1674 Datasheet

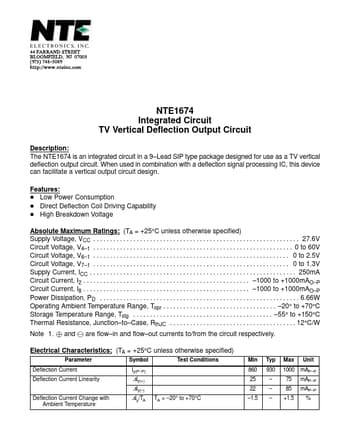

Additional preview pages of the NTE1674 datasheet.

The NTE1674 is an integrated circuit in a 9 Lead SIP type package designed for use as a TV vertical deflection output circuit.

D Low Power Consumption D Direct Deflection Coil Driving Capability D High Breakdown Voltage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . 27.6V Circuit Voltage, V4.
1.
0 to 60V Circuit Voltage, V6.
1.
