NTE1634 - Integrated Circuit Dual Preamp

Product Overview

NTE

NTE1634 Integrated Circuit Dual Preamp by NTE - Datasheet Preview — Datasheet preview – NTE1634

Datasheet Details

Part number	NTE1634
Manufacturer	NTE
File Size	19.65 KB
Description	Integrated Circuit Dual Preamp
Datasheet	NTE1634 Datasheet

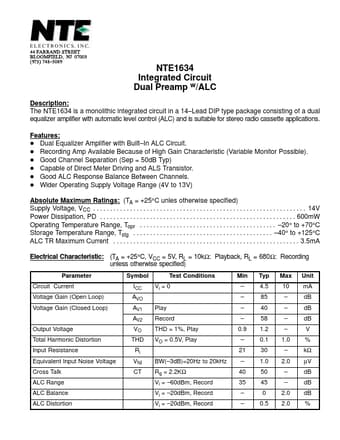

Additional preview pages of the NTE1634 datasheet.

Product details

Description

The NTE1634 is a monolithic integrated circuit in a 14 Lead DIP type package consisting of a dual equalizer amplifier with automatic level control (ALC) and is suitable for stereo radio cassette applications.

Features

D Dual Equalizer Amplifier with Built.
In ALC Circuit. D Recording Amp Available Because of High Gain Characteristic (Variable Monitor Possible). D Good Channel Separation (Sep = 50dB Typ) D Capable of Direct Meter Driving and ALS Transistor. D Good ALC Response Balance Between Channels. D Wider Operating Supply Voltage Range (4V to 13V) Absolute Maximum Ratings: (TA = +25°C unles otherwise specified) Supply Voltage, VCC.
