NTE1624 - Integrated Circuit AM/FM Radio Circuit w/Power Amp

Product Overview

NTE

Part number	NTE1624
Manufacturer	NTE
File Size	24.79 KB
Description	Integrated Circuit AM/FM Radio Circuit w/Power Amp
Datasheet	NTE1624 Datasheet

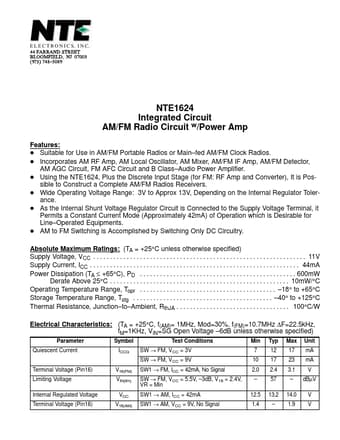

Additional preview pages of the NTE1624 datasheet.

D Suitable for Use in AM/FM Portable Radios or Main.
fed AM/FM Clock Radios. D Incorporates AM RF Amp, AM Local Oscillator, AM Mixer, AM/FM IF Amp, AM/FM Detector, AM AGC Circuit, FM AFC Circuit and B Class.
Audio Power Amplifier. D Using the NTE1624, Plus the Discrete Input Stage (for FM: RF Amp and Converter), It is Possible to Construct a Complete AM/FM Radios Receivers. D Wide Operating Voltage Range: 3V to Approx 13V, Depending on the Internal Regulator Tolerance. D As the In.
