NTE1609 - Integrated Circuit Instrumentation Timer

Product Overview

NTE

NTE1609 Integrated Circuit Instrumentation Timer by NTE - Datasheet Preview — Datasheet preview – NTE1609

Datasheet Details

Part number	NTE1609
Manufacturer	NTE
File Size	22.55 KB
Description	Integrated Circuit Instrumentation Timer
Datasheet	NTE1609 Datasheet

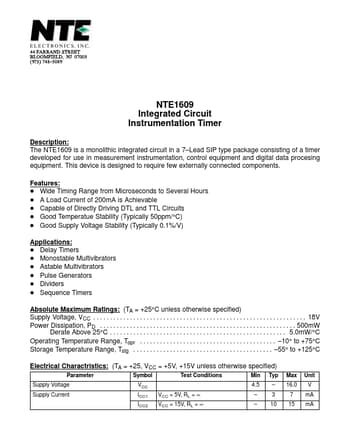

Additional preview pages of the NTE1609 datasheet.

Product details

Description

The NTE1609 is a monolithic integrated circuit in a 7 Lead SIP type package consisting of a timer developed for use in measurement instrumentation, control equipment and digital data procesing equipment.

Features

D Wide Timing Range from Microseconds to Several Hours D A Load Current of 200mA is Achievable D Capable of Directly Driving DTL and TTL Circuits D Good Temperatue Stability (Typically 50ppm/°C) D Good Supply Voltage Stability (Typically 0.1%/V).
