NTE1608 - Integrated Circuit AM Tuner

Product Overview

NTE

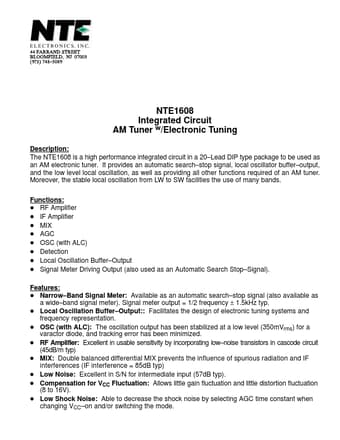

NTE1608 Integrated Circuit AM Tuner by NTE - Datasheet Preview — Datasheet preview – NTE1608

Datasheet Details

Part number	NTE1608
Manufacturer	NTE
File Size	24.96 KB
Description	Integrated Circuit AM Tuner
Datasheet	NTE1608 Datasheet
Additional preview pages of the NTE1608 datasheet.

Product details

Description

The NTE1608 is a high performance integrated circuit in a 20 Lead DIP type package to be used as an AM electronic tuner. stop signal, local oscillator buffer output, and the low level local oscillation, as well as providing all other functions required of an AM tuner.

Features

D Narrow.
Band Signal Meter: Available as an automatic search.
stop signal (also available as a wide.
band signal meter). Signal meter output = 1/2 frequency ± 1.5kHz typ. D Local Oscillation Buffer.
Output:: Facilitates the design of electronic tuning systems and frequency representation. D OSC (with ALC): The oscillation output has been stabilized at a low level (350mVrms) for a varactor diode, and tracking error has been minimized. D RF Amplifier: Excellent in usa.
