NTE1604 - Integrated Circuit FM IF

Product Overview

NTE

Part number	NTE1604
Manufacturer	NTE
File Size	27.23 KB
Description	Integrated Circuit FM IF
Datasheet	NTE1604 Datasheet

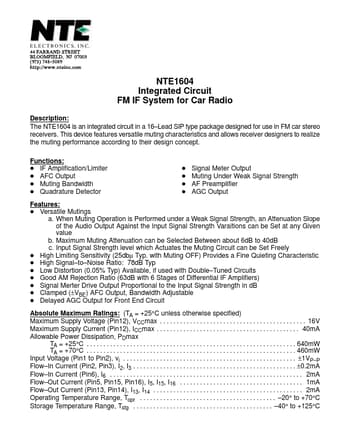

Additional preview pages of the NTE1604 datasheet.

The NTE1604 is an integrated circuit in a 16 Lead SIP type package designed for use in FM car stereo receivers.

versatile muting characteristics and allows receiver designers to realize the muting performance according to their design concept. Functions: D IF Amplification/Limiter D AFC Output D Muting Bandwidth D Quadrature Detector D D D D Signal Meter Output Muting Under Weak Signal Strength AF Preamplifier AGC Output Features: D Versatile Mutings a. When Muting Operation is Performed under a Weak Signal Strength, an Attenuation Slope of the Audio Output Against the Input Signal Strength Varaitions.
