NTE1578 - Integrated Circuit FM Mixer/IF Amp

Product Overview

NTE

NTE1578 Integrated Circuit FM Mixer/IF Amp by NTE - Datasheet Preview — Datasheet preview – NTE1578

Datasheet Details

Part number	NTE1578
Manufacturer	NTE
File Size	21.25 KB
Description	Integrated Circuit FM Mixer/IF Amp
Datasheet	NTE1578 Datasheet

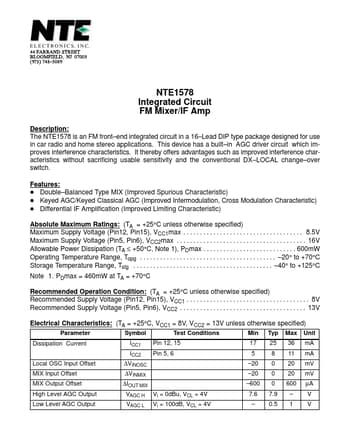

Additional preview pages of the NTE1578 datasheet.

Product details

Description

The NTE1578 is an FM front end integrated circuit in a 16 Lead DIP type package designed for use in car radio and home stereo applications. in AGC driver circuit which improves interference characteristics. LOCAL change over switch.

Features

D Double.
Balanced Type MIX (Improved Spurious Characteristic) D Keyed AGC/Keyed Classical AGC (Improved Intermodulation, Cross Modulation Characteristic) D Differential IF Amplification (Improved Limiting Characteristic) Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage (Pin12, Pin15), VCC1max.
. 8.5V Maximum Supply Voltage (Pin5, Pin6), VCC2max.
