NTE1561 - Integrated Circuit 5 LED VU Level Meter

Product Overview

NTE

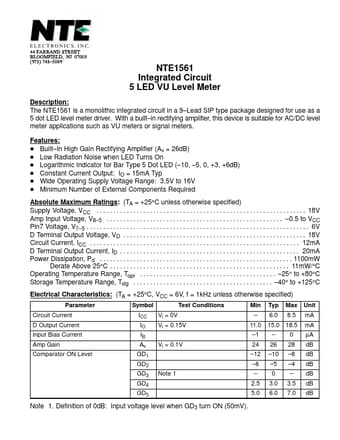

NTE1561 Integrated Circuit 5 LED VU Level Meter by NTE - Datasheet Preview — Datasheet preview – NTE1561

Datasheet Details

Part number	NTE1561
Manufacturer	NTE
File Size	18.85 KB
Description	Integrated Circuit 5 LED VU Level Meter
Datasheet	NTE1561 Datasheet
Additional preview pages of the NTE1561 datasheet.

Product details

Description

The NTE1561 is a monolithic integrated circuit in a 9 Lead SIP type package designed for use as a 5 dot LED level meter driver. in rectifying amplifier, this device is suitable for AC/DC level meter applications such as VU meters or signal meters.

Features

D Built.
In High Gain Rectifying Amplifier (Av = 26dB) D Low Radiation Noise when LED Turns On D Logarithmic Indicator for Bar Type 5 Dot LED (.
10,.
5, 0, +3, +6dB) D Constant Current Output: IO = 15mA Typ D Wide Operating Supply Voltage Range: 3.5V to 16V D Minimum Number of External Components Required Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
