NTE1507 - Integrated Circuit 10-Step Adjustable Analog Level Detector

Product Overview

NTE

NTE1507 Integrated Circuit 10-Step Adjustable Analog Level Detector by NTE - Datasheet Preview — Datasheet preview – NTE1507

Datasheet Details

Part number	NTE1507
Manufacturer	NTE
File Size	23.89 KB
Description	Integrated Circuit 10-Step Adjustable Analog Level Detector
Datasheet	NTE1507 Datasheet

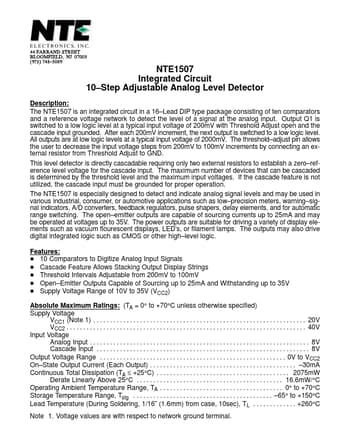

Additional preview pages of the NTE1507 datasheet.

Product details

Description

The NTE1507 is an integrated circuit in a 16 Lead DIP type package consisting of ten comparators and a reference voltage network to detect the level of a signal at the analog input.

Features

D 10 Comparators to Digitize Analog Input Signals D Cascade Feature Allows Stacking Output Display Strings D Threshold Intervals Adjustable from 200mV to 100mV D Open.
Emitter Outputs Capable of Sourcing up to 25mA and Withstanding up to 35V D Supply Voltage Range of 10V to 35V (VCC2) Absolute Maximum Ratings: (TA = 0° to +70°C unless otherwise specified) Supply Voltage VCC1 (Note 1).
