NTE1465 - Integrated Circuit Audio Power Amplifier

Product Overview

NTE

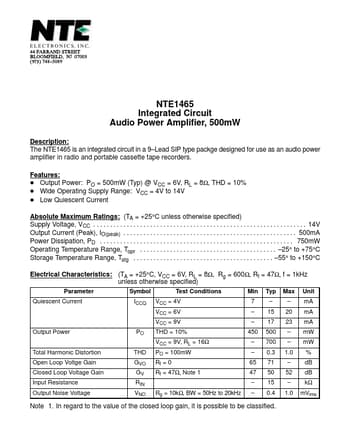

NTE1465 Integrated Circuit Audio Power Amplifier by NTE - Datasheet Preview — Datasheet preview – NTE1465

Datasheet Details

Part number	NTE1465
Manufacturer	NTE
File Size	21.60 KB
Description	Integrated Circuit Audio Power Amplifier
Datasheet	NTE1465 Datasheet
Additional preview pages of the NTE1465 datasheet.

Product details

Description

The NTE1465 is an integrated circuit in a 9 Lead SIP type packge designed for use as an audio power amplifier in radio and portable cassette tape recorders.

Features

D Output Power: PO = 500mW (Typ) @ VCC = 6V, RL = 8Ω, THD = 10% D Wide Operating Supply Range: VCC = 4V to 14V D Low Quiescent Current Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . . . 14V Output Current (Peak), IO(peak).
. . 500mA Power Dissipation, PD.
