1N5627

The 1N5627 is Glass Passivated Junction Rectifier designed by NTE.

Product Overview

NTE

Part number	1N5627, 1N5624
Manufacturer	NTE
File Size	47.45 KB
Description	Glass Passivated Junction Rectifier
Datasheet	1N5624-NTE.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5627, 1N5624. Please refer to the document for exact specifications by model.

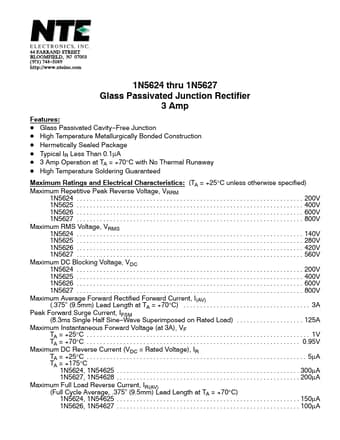

Additional preview pages of the 1N5627 datasheet.

D Glass Passivated Cavity.
Free Junction D High Temperature Metallurgically Bonded Construction D Hermetically Sealed Package D Typical IR Less Than 0.1μA D 3 Amp Operation at TA = +70°C with No Thermal Runaway D High Temperature Soldering Guaranteed Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified) Maximum Repetitive 1N5624 . . . . . Peak Reverse V. . o. lt. a. g. e. ,. V. R. . R. M.
