NTE8212 - Integrated Circuit Schottky / 8-Bit Input/Output Port

Product Overview

NTE Electronics

Datasheet Details

Part number	NTE8212
Manufacturer	NTE Electronics
File Size	28.67 KB
Description	Integrated Circuit Schottky / 8-Bit Input/Output Port
Datasheet	NTE8212 Datasheet

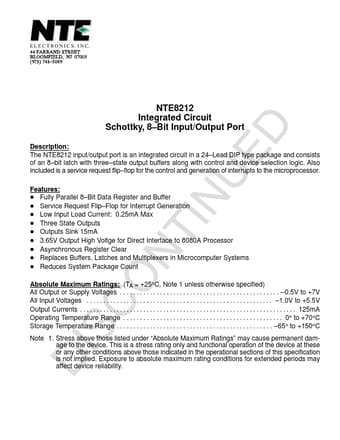

Additional preview pages of the NTE8212 datasheet.

Product details

Description

The NTE8212 input/output port is an integrated circuit in a 24 Lead DIP type package and consists of an 8 bit latch with three state output buffers along with control and device selection logic. flop for the control and generation of interrupts to the microprocessor.

Features

D Fully Parallel 8.
Bit Data Register and Buffer D Service Request Flip.
Flop for Interrupt Generation D Low Input Load Current: 0.25mA Max D Three State Outputs D Outputs Sink 15mA D 3.65V Output High Voltge for Direct Interface to 8080A Processor D Asynchronous Register Clear D Replaces Buffers, Latches and Multiplexers in Microcomputer Systems D Reduces System Package Count Absolute Maximum Ratings: (TA = +25°C, Note 1 unless otherwise specified) All Output or Supply Voltages.
