NTE723 - Integrated Circuit FM Sound System

Product Overview

NTE Electronics

Datasheet Details

Part number	NTE723
Manufacturer	NTE Electronics
File Size	22.54 KB
Description	Integrated Circuit FM Sound System
Datasheet	NTE723 Datasheet
Additional preview pages of the NTE723 datasheet.

Product details

Description

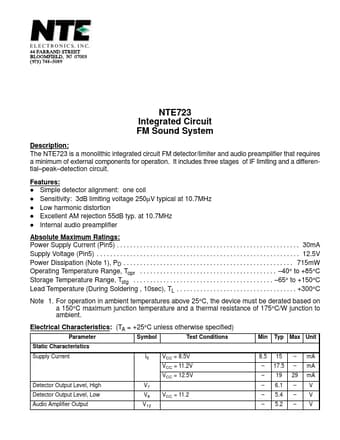

The NTE723 is a monolithic integrated circuit FM detector/limiter and audio preamplifier that requires a minimum of external components for operation. peak detection circuit.

Features

D Simple detector alignment: one coil D Sensitivity: 3dB limiting voltage 250µV typical at 10.7MHz D Low harmonic distortion D Excellent AM rejection 55dB typ. at 10.7MHz D Internal audio preamplifier Absolute Maximum Ratings: Power Supply Current (Pin5).
30mA Supply Voltage (Pin5).
. 12.5V Po.
