NTE60 - Silicon Complementary Transistors High Power Audio / Disk Head Positioner for Linear Applications

Name: NTE60
SKU: NTE60-467573

NTE Electronics

📥 Download Datasheet

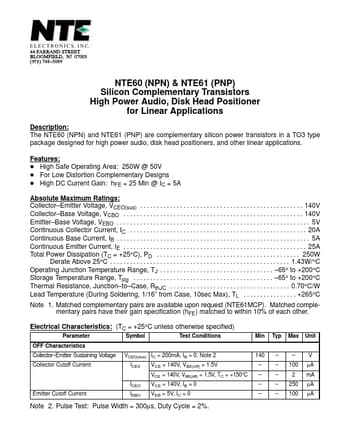

NTE60 Datasheet Preview — Preview of NTE60 PDF

Datasheet Details

Part number	NTE60
Manufacturer	NTE Electronics
File Size	24.10 KB
Description	Silicon Complementary Transistors High Power Audio / Disk Head Positioner for Linear Applications
Datasheet	NTE60_NTEElectronics.pdf

NTE60 Product details

Description

The NTE60 (NPN) and NTE61 (PNP) are complementary silicon power transistors in a TO3 type package designed for high power audio, disk head positioners, and other linear applications.

Features

D High Safe Operating Area: 250W @ 50V D For Low Distortion Complementary Designs D High DC Current Gain: hFE = 25 Min @ IC = 5A Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO(sus).
. . . . 140V Collector.
Base Voltage, VCBO.
. . . . 140V Emitter.
Base Voltage, VEBO.
