NTE5864 - Silicon Power Rectifier Diode / 25 Amp

Description

The NTE5864 through NTE5889 are silicon power rectifier diodes in a DO4 type package designed with very low leakage current as well as good surge handling capability.

These devices are ideal for use in applications where economy, power capability, and reliability are demanding considerations.

📥 Download Datasheet

Datasheet Details

Part number NTE5864
Manufacturer NTE Electronics (defunct)
File Size 15.61 KB
Description Silicon Power Rectifier Diode / 25 Amp
Datasheet download datasheet NTE5864 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE50 Silicon Complementary Transistors NTE
NTE5000A Zener Diode NTE
NTE5001A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance NTE
NTE5002A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance NTE
NTE5003A (NTE5000A - NTE5060A) Zener Diode / 1/2 Watt 5% Tolerance NTE

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE586 Silicon Rectifier Diode Schottky Barrier / Fast Switching
NTE5860 (NTE5850 - NTE5869) Silicon Power Rectifier Diode
NTE5861 (NTE5850 - NTE5869) Silicon Power Rectifier Diode
NTE5862 (NTE5850 - NTE5869) Silicon Power Rectifier Diode
NTE5863 (NTE5850 - NTE5869) Silicon Power Rectifier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

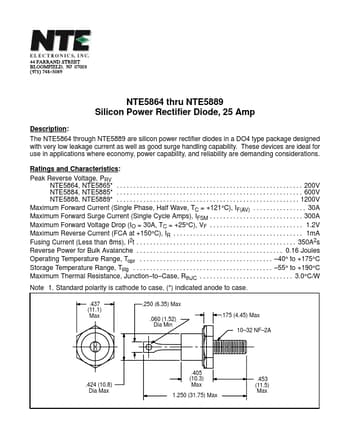

NTE5864 thru NTE5889 Silicon Power Rectifier Diode, 25 Amp Description: The NTE5864 through NTE5889 are silicon power rectifier diodes in a DO4 type package designed with very low leakage current as well as good surge handling capability. These devices are ideal for use in applications where economy, power capability, and reliability are demanding considerations. Ratings and Characteristics: Peak Reverse Voltage, PRV NTE5864, NTE5865* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V NTE5884, NTE5885* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE5888, NTE5889* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
