NTE30083 - (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount

Download the NTE30083 datasheet PDF. This datasheet also covers the NTE30081 variant, as both devices belong to the same (nte30081 - nte30085) light emitting diode (led) right angle surface mount family and are provided as variant models within a single manufacturer datasheet.

Features

  • D Available in 5 Different Colors: NTE30081 (Super Red, GaAlAs/GaAs) NTE30082 (Super Green, GaP/GaP) NTE30083 (Super Yellow, AllnGaP/GaAs) NTE30084 (Super Orange) NTE30085 (Super Blue, GalnN/GaN) D 3.2mm x 1.0mm Right Angle SMT LED, 1.5mm Thickness D Single Color D Suitable for All SMT Assembly and Solder Process Ideal for Backlighting www. DataSheet4U. com D Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) DC Forward Current, IF NTE30081.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NTE30081_NTEElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NTE30083
Manufacturer NTE Electronics (defunct)
File Size 113.18 KB
Description (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount
Datasheet download datasheet NTE30083 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NTE300 Silicon Complementary Transistors Audio Power Amplifier NTE
NTE3000 Light Emitting Diode NTE
NTE30001 Infrared Emitting Diode NTE
NTE3001 Light Emitting Diode NTE
NTE3007 Discrete LED Indicators NTE

Other Datasheets by NTE Electronics (defunct)

Part Number Description
NTE30081 (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount
NTE30082 (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount
NTE30084 (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount
NTE30085 (NTE30081 - NTE30085) Light Emitting Diode (LED) Right Angle Surface Mount
NTE30088 (NTE30088 / NTE30089) Light Emitting Diode (LED) SOT-23 Surface Mount

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

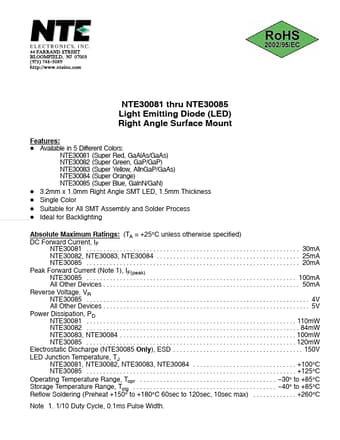

NTE30081 thru NTE30085 Light Emitting Diode (LED) Right Angle Surface Mount Features: D Available in 5 Different Colors: NTE30081 (Super Red, GaAlAs/GaAs) NTE30082 (Super Green, GaP/GaP) NTE30083 (Super Yellow, AllnGaP/GaAs) NTE30084 (Super Orange) NTE30085 (Super Blue, GalnN/GaN) D 3.2mm x 1.0mm Right Angle SMT LED, 1.5mm Thickness D Single Color D Suitable for All SMT Assembly and Solder Process Ideal for Backlighting www.DataSheet4U.com D Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) DC Forward Current, IF NTE30081 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30mA NTE30082, NTE30083, NTE30084 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
