NST1001 - High-Accuracy 2-pins Digital Output Temperature Sensor

NOVOSENSE

📥 Download Datasheet

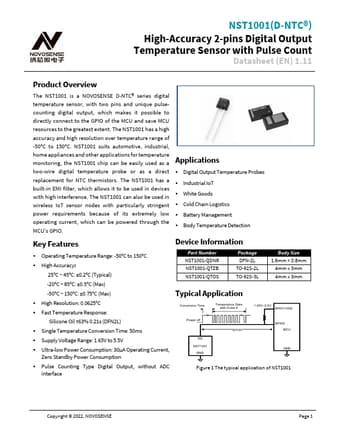

NST1001 Datasheet Preview — Preview of NST1001 PDF

Datasheet Details

Part number	NST1001
Manufacturer	NOVOSENSE
File Size	940.23 KB
Description	High-Accuracy 2-pins Digital Output Temperature Sensor
Datasheet	NST1001-NOVOSENSE.pdf

NST1001 Product details

Description

6 4.1 OVERVIEW 6 4.2 FEATURE DESCRIPTION 6 4.3 PULSE COUNT AND TEMPERATURE CONVERSION EQUATION 7 5 TYPICAL APPLICATION 8 5.1 SINGLE GPIO APPLICATION 8 5.2 NO POWER CONSUMPTION IN STANDBY MODE APPLICATION 8 5.3 PULL-DOWN RESISTOR DESIGN SOLUTIONS 9 5.4 MULTI-POINT TEMPERATURE ACQUISITION 9 5.5 TEMPERATURE ISOLATED ACQUISITION 9 6 PACKAGE INFORMATION

Features

Operating Temperature Range: -50°C to 150°C.
High Accuracy： 25°C ~ 45°C: ±0.2°C (Typical) -20°C ~ 85°C: ±0.5°C (Max) -50°C ~ 150°C: ±0.75°C (Max).
High Resolution: 0.0625°C.
Fast Temperature Response: Silicone Oil τ63% 0.21s (DFN2L).
Single Temperature Conversion Time: 50ms.
Supply Voltage Range: 1.65V to 5.5V.
Ultra-low Power Consumption: 30µA Operating Current, Zero Standby Power Consumption.
Pulse Counting Type Digital Output, without ADC interface De.
