NSREF3030 - Precision Low Power SOT23-3L Series Voltage Reference

Download the NSREF3030 datasheet PDF. This datasheet also covers the NSREF3012 variant, as both devices belong to the same precision low power sot23-3l series voltage reference family and are provided as variant models within a single manufacturer datasheet.

Features

  • Excellent Specified Drift Performance: 35 ppm/°C (Maximum) from -40°C to +125°C.
  • Output Noise (0.1 to 10Hz): 22uVpp of NSREF3025.
  • High Output Current: ±10 mA.
  • High Accuracy: 0.2% Maximum.
  • Do Not Require a Load Capacitor to Be Stable.
  • Low Dropout: 1mV.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSREF3012-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NSREF3030
Manufacturer NOVOSENSE
File Size 5.94 MB
Description Precision Low Power SOT23-3L Series Voltage Reference
Datasheet download datasheet NSREF3030 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSR003A0X4Z Naos Raptor 3A: Non-Isolated DC-DC Power Modules Lineage Power
NSR006A0X4Z Naos Raptor 6A: Non-Isolated DC-DC Power Modules Lineage Power
NSR010A0X4Z Naos Raptor 10A: Non-Isolated DC-DC Power Modules Lineage Power
NSR0130M2T5G Schottky Barrier Diode ON Semiconductor
NSR0130P2 Schottky Barrier Diode ON Semiconductor

Other Datasheets by NOVOSENSE

Part Number Description
NSREF3033 Precision Low Power SOT23-3L Series Voltage Reference
NSREF3012 Precision Low Power SOT23-3L Series Voltage Reference
NSREF3020 Precision Low Power SOT23-3L Series Voltage Reference
NSREF3025 Precision Low Power SOT23-3L Series Voltage Reference
NSREF3040 Precision Low Power SOT23-3L Series Voltage Reference

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

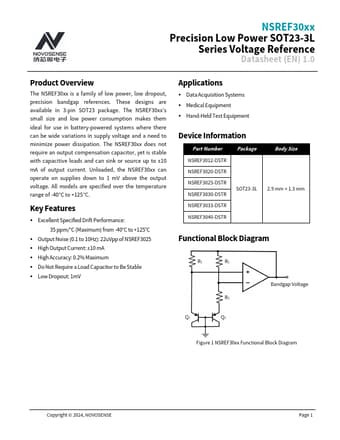

NSREF30xx Precision Low Power SOT23-3L Series Voltage Reference Datasheet (EN) 1.0 Product Overview The NSREF30xx is a family of low power, low dropout, precision bandgap references. These designs are available in 3-pin SOT23 package. The NSREF30xx's small size and low power consumption makes them ideal for use in battery-powered systems where there can be wide variations in supply voltage and a need to minimize power dissipation. The NSREF30xx does not require an output compensation capacitor, yet is stable with capacitive loads and can sink or source up to ±10 mA of output current. Unloaded, the NSREF30xx can operate on supplies down to 1 mV above the output voltage. All models are specified over the temperature range of -40°C to +125°C.
