NSL21610 - Single-Channel 450mA Automotive Linear LED Driver

NOVOSENSE

The NSL21610 by NOVOSENSE is a Single-Channel 450mA Automotive Linear LED Driver. Below is the official datasheet preview.

📥 Download Datasheet

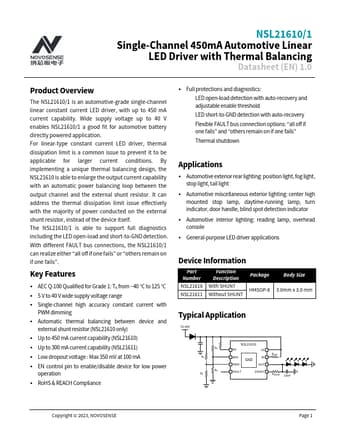

NSL21610 Single-Channel 450mA Automotive Linear LED Driver by NOVOSENSE - Datasheet Preview — Official preview page of the **NSL21610** Single-Channel 450mA Automotive Linear LED Driver datasheet (NOVOSENSE).

Datasheet Details

Part number	NSL21610
Manufacturer	NOVOSENSE
File Size	1.21 MB
Description	Single-Channel 450mA Automotive Linear LED Driver
Datasheet	NSL21610-NOVOSENSE.pdf
Additional preview pages of the NSL21610 datasheet.

NSL21610 Product details

Description

With SHUNT Without SHUNT Package HMSOP-8 Body Size 3.0mm x 3.0 mm Typical Application 5V-40V R3 R1 R4 R2 NSL21610 EN VS DEN GND IN PWM OUT FAULT SHUNT RISET RSHUNT 10nF Copyright © 2023, NOVOSENSE Page 1 NSL21610/1 Datasheet (EN) 1.0 INDEX 1. PIN CONFIGURATION AND FUNCTIONS 4 2. ABSOLUTE MAXIMUM RATINGS 5 3. ESD RATINGS 5 4. RECOMMENDED OPERATING CONDITIONS 5 5. THERMAL INFORMATION 6 6. SPECIFICATIONS 6 6.1. ELECTRICAL CHARACTERISTICS 6 6.2. TYPICAL PERFORMANCE CHARACTERI

Features

AEC Q-100 Qualified for Grade 1: TA from.
40 °C to 125 °C.
5 V to 40 V wide supply voltage range.
Single-channel high accuracy constant current with PWM dimming.
Automatic thermal balancing between device and external shunt resistor (NSL21610 only).
Up to 450 mA current capability (NSL21610).
Up to 300 mA current capability (NSL21611).
Low dropout voltage : Max 350 mV at 100 mA.
EN control pin to enable/disable device for low power operation.
