NSI8608 - Multi-channel Isolated Digital Input Receiver

Description

7.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS 8 7.2.

INSULATION CHARACTERISTICS 8 7.3.

Features

  • Up to 3000Vrms Insulation voltage.
  • Date rate: DC to 2Mbps.
  • Bipolar digital interface with sinking or sourcing inputs.
  • High Input-Voltage Range: ±60 V.
  • Compliant to IEC 61131-2 Type 1,2,3.
  • Accurate Current Limit for Low-Power Dissipation.
  • Power supply voltage: 2.5V to 5.5V.
  • High CMTI: 50kV/us.
  • Chip level ESD: HBM: ±2kV.
  • High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity.
  • Operation temperature: -40℃~125℃.
  • R.

📥 Download Datasheet

Datasheet Details

Part number NSI8608
Manufacturer NOVOSENSE
File Size 1.21 MB
Description Multi-channel Isolated Digital Input Receiver
Datasheet download datasheet NSI8608 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSI1000 1024 x 32 Resolution CMOS Image Sensor Newsight Imaging
NSI3000 CMOS Image Sensor Newsight Imaging
NSI45015WT1G Constant Current Regulator & LED Driver ON Semiconductor
NSI45020AT1G Constant Current Regulator & LED Driver ON Semiconductor
NSI45020JZ Adjustable Constant Current Regulator & LED Driver ON Semiconductor

Other Datasheets by NOVOSENSE

Part Number Description
NSI8021 High Reliability Dual-Channel Digital Isolators
NSi8100 High Reliability Bidire ctional I2C Isolators
NSi8120 High Reliability Dual-Channel Digital Isolators
NSi8120D0 Dual-Channel Digital Isolators
NSi8121 High Reliability Dual-Channel Digital Isolators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

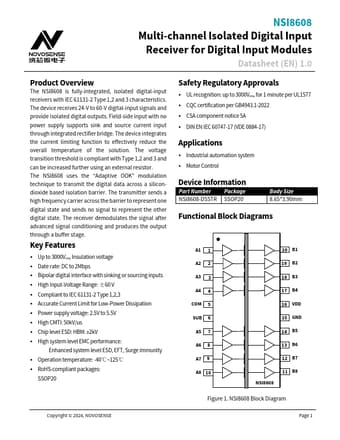

NSI8608 Multi-channel Isolated Digital Input Receiver for Digital Input Modules Datasheet (EN) 1.0 Product Overview The NSI8608 is fully-integrated, isolated digital-input receivers with IEC 61131-2 Type 1,2 and 3 characteristics. The device receives 24-V to 60-V digital-input signals and provide isolated digital outputs. Field-side input with no power supply supports sink and source current input through integrated rectifier bridge. The device integrates the current limiting function to effectively reduce the overall temperature of the solution. The voltage transition threshold is compliant with Type 1,2 and 3 and can be increased further using an external resistor.
