NSI8222 - High Reliability Dual-Channel Digital Isolators

Download the NSI8222 datasheet PDF. This datasheet also covers the NSI8220 variant, as both devices belong to the same high reliability dual-channel digital isolators family and are provided as variant models within a single manufacturer datasheet.

General Description

6.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS 18 6.2.

SAFETY-LIMITING VALUES 19 6.3.

Key Features

  • Up to 5000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body.
  • Default output high level or low level option.
  • Isolation surge voltage: >10kV.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSI8220-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NSI8222
Manufacturer NOVOSENSE
File Size 2.91 MB
Description High Reliability Dual-Channel Digital Isolators
Datasheet download datasheet NSI8222 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSI1000 1024 x 32 Resolution CMOS Image Sensor Newsight Imaging
NSI3000 CMOS Image Sensor Newsight Imaging
NSI45015WT1G Constant Current Regulator & LED Driver ON Semiconductor
NSI45020AT1G Constant Current Regulator & LED Driver ON Semiconductor
NSI45020JZ Adjustable Constant Current Regulator & LED Driver ON Semiconductor

Other Datasheets by NOVOSENSE

Part Number Description
NSI8222-Q1 High Reliability Dual-Channel Digital Isolators
NSi8222C Dual-Channel Digital Isolators
NSI8220 High Reliability Dual-Channel Digital Isolators
NSI8220-Q1 High Reliability Dual-Channel Digital Isolators
NSi8220C Dual-Channel Digital Isolators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

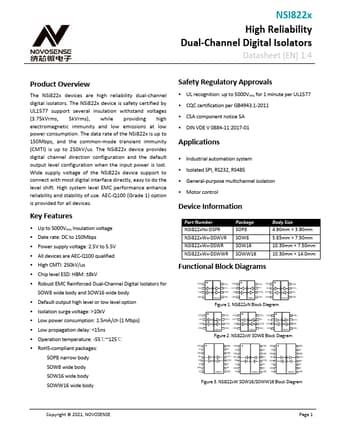

NSi822x High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.6 Product Overview The NSi822x devices are high reliability dual-channel digital isolators. The NSi822x device is safety certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi822x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi822x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi822x device support to connect with most digital interface directly, easy to do the level shift.
