NSC2860X - General Capacitive Sensor Conditioner

NOVOSENSE

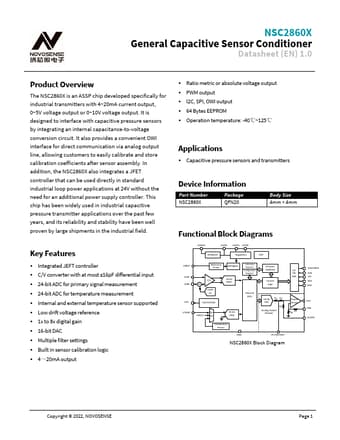

The NSC2860X by NOVOSENSE is a General Capacitive Sensor Conditioner. Below is the official datasheet preview.

📥 Download Datasheet

NSC2860X General Capacitive Sensor Conditioner by NOVOSENSE - Datasheet Preview — Official preview page of the **NSC2860X** General Capacitive Sensor Conditioner datasheet (NOVOSENSE).

Datasheet Details

Part number	NSC2860X
Manufacturer	NOVOSENSE
File Size	1.68 MB
Description	General Capacitive Sensor Conditioner
Datasheet	NSC2860X-NOVOSENSE.pdf
Additional preview pages of the NSC2860X datasheet.

NSC2860X Product details

Description

8 4.1. NORMAL REGISTERS 8 4.1. EEPROM REGISTERS 9 5. FUNCTION DESCRIPTION 16 5.1. OVERVIEW 16 5.2. ANALOG FRONT-END MODULE 1: PRIMARY SIGNAL CHANNEL 17 5.2.1. Capacitance measurement mode 17 5.2.2. The measurement range of C/V converter 18 5.2.3. Digital Filter 18 5.3. ANALOG MODULE 2: TEMPERATURE MEASUREMENT CHANNEL 19 5.3.1. Internal Temperature Sensor 19 5.3.2. External Temperature Sensor 19 5.4. ANALOG OUTPUT STAGE 20 5.4.1. 16-bit DAC

Features

Integrated JEFT controller.
C/V converter with at most ±16pF differential input.
24-bit ADC for primary signal measurement.
24-bit ADC for temperature measurement.
Internal and external temperature sensor supported.
Low drift voltage reference.
1x to 8x digital gain.
16-bit DAC.
Multiple filter settings.
Built in sensor calibration logic.
4～20mA output.
Ratio metric or absolute voltage output.
PWM output.
I2C, SPI, OWI outpu.
