MB2411S1x0x-xx - (MB2400 Series) Distinctive Characteristics

Download the MB2411S1x0x-xx datasheet PDF. This datasheet also covers the MB2400 variant, as both devices belong to the same (mb2400 series) distinctive characteristics family and are provided as variant models within a single manufacturer datasheet.

Description

FOR TYPICAL ORDERING EXAMPLE MB2411E1W01-FA Black .201” (5.1mm) Diameter Cap .285” (7.24mm) Threaded Bushing with D Flat SPDT ON-(ON) Circuit Silver Contacts with 3-Amp Rating Solder Lug Terminals NKK Switches email: sales@nkkswitches.com Phone (480) 991-0942 Fax (

Features

  • 0 (2.0) Typ .079 MB2461E1W01-FA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB2400_NKK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MB2411S1x0x-xx
Manufacturer NKK
File Size 196.38 KB
Description (MB2400 Series) Distinctive Characteristics
Datasheet download datasheet MB2411S1x0x-xx Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB24 (MB24 - MB220) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Pan Jit
MB240F-C Surface Mount Bridge Rectifiers SeCoS
MB245S Surface Mount Glass Passivated Bridge Rectifier Eris
MB24A (MB24 - MB220) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Pan Jit
MB24F Surface Mount Schottky Bridge BLUE ROCKET ELECTRONICS

Other Datasheets by NKK

Part Number Description
MB2411S2x0x-xx (MB2400 Series) Distinctive Characteristics
MB2411A1x0x-xx (MB2400 Series) Distinctive Characteristics
MB2411A2x0x-xx (MB2400 Series) Distinctive Characteristics
MB2411E1A01-xx (MB2400 Series) Distinctive Characteristics
MB2411E1x0x-xx (MB2400 Series) Distinctive Characteristics

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

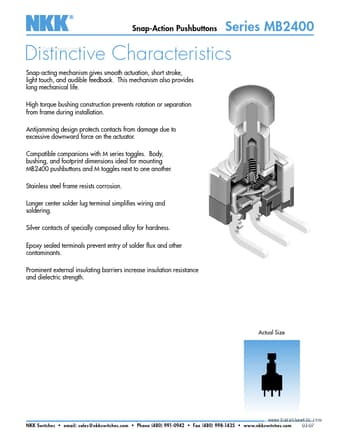

Snap-Action Pushbuttons www.DataSheet4U.com Series MB2400 Distinctive Characteristics Snap-acting mechanism gives smooth actuation, short stroke, light touch, and audible feedback. This mechanism also provides long mechanical life. High torque bushing construction prevents rotation or separation from frame during installation. Antijamming design protects contacts from damage due to excessive downward force on the actuator. Compatible companions with M series toggles. Body, bushing, and footprint dimensions ideal for mounting MB2400 pushbuttons and M toggles next to one another. Stainless steel frame resists corrosion. Longer center solder lug terminal simplifies wiring and soldering. Silver contacts of specially composed alloy for hardness.
