KVD500L225M43A0T00 - DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS

Download the KVD500L225M43A0T00 datasheet PDF. This datasheet also covers the KVD250L105M32A0T00-NIPPONCHEMI variant, as both devices belong to the same dipped radial lead multilayer ceramic capacitors family and are provided as variant models within a single manufacturer datasheet.

Features

  • . Temperature range : -55 to +150℃ 2. Temperature characteristic : X8L 3. Small in size and wide capacitance range. Max. 15µF is available. 4. Epoxy resin(UL94 V-0)used for coating. 5. Automotive grade(AEC-Q200).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KVD250L105M32A0T00-NIPPONCHEMI-CON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KVD500L225M43A0T00
Manufacturer NIPPON CHEMI-CON
File Size 278.44 KB
Description DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS
Datasheet download datasheet KVD500L225M43A0T00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by NIPPON CHEMI-CON

Part Number Description
KVD500L105M32A0T00 DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS
KVD500L155M43A0T00 DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS
KVD500L334M32A0T00 DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS
KVD500L335M55A0T00 DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS
KVD500L474M32A0T00 DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

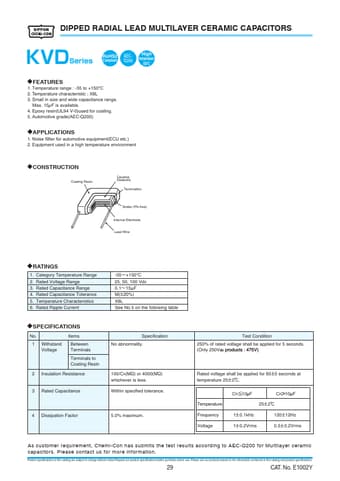

DIPPED RADIAL LEAD MULTILAYER CERAMIC CAPACITORS KVDSeries RCRoomoHpHlSiaSn2t AECQ200 High temperature 150℃ ◆FEATURES 1. Temperature range : -55 to +150℃ 2. Temperature characteristic : X8L 3. Small in size and wide capacitance range. Max. 15µF is available. 4. Epoxy resin(UL94 V-0)used for coating. 5. Automotive grade(AEC-Q200) ◆APPLICATIONS 1. Noise fillter for automotive equipment(ECU etc.) 2. Equipment used in a high temperature environment ◆CONSTRUCTION Coating Resin CDeierlaemctircic Termination Solder (Pb-free) Internal Electrode Lead Wire ◆RATINGS 1. Category Temperature Range 2. Rated Voltage Range 3. Rated Capacitance Range 4. Rated Capacitance Tolerance 5. Temperature Characteristics 6. Rated Ripple Current -55～+150℃ 25, 50, 100 Vdc 0.1～15μF M(±20%) X8L See No.
