NW36M25LA - Frequency Controlled Crystal Oscillator

Product Overview

NIHON DEMPA KOGYO

Part number	NW36M25LA
Manufacturer	NIHON DEMPA KOGYO
File Size	106.21 KB
Description	Frequency Controlled Crystal Oscillator
Datasheet	NW36M25LA Datasheet

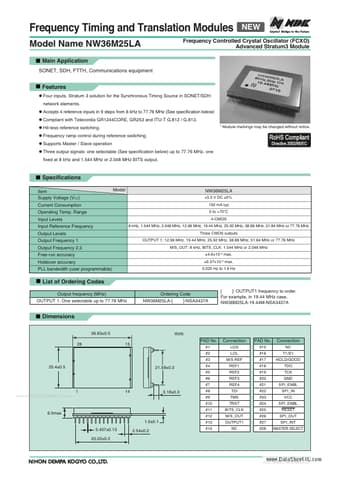

Additional preview pages of the NW36M25LA datasheet.

l Four inputs, Stratum 3 solution for the Synchronous Timing Source in SONET/SDH network elements. l Accepts 4 reference inputs in 9 steps from 8 kHz to 77.76 MHz (See specification below) l Compliant with Telecordia GR1244CORE, GR253 and ITU-T G.812 / G.813. l Hit-less reference switching. l Frequency ramp control during reference switching. l Supports Master / Slave operation l Three output signals: one selectable (See specification below) up to 77.76 MHz, one fixed at 8 kHz and 1.544 MHz or 2.
