NSSA572CT - AMBER LED

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) Au-plated 0.018g(TYP)

。 Dimensions do not include mold flash.

a>b、a。 The side with the larger distance is the cathode.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSS1001CL Bipolar Transistor ON Semiconductor
NSS12100M3T5G 12 V 1 A / Low VCE(sat) PNP Transistor ON Semiconductor
NSS12100UW3TCG PNP Transistor ON Semiconductor
NSS12100XV6T1G Low VCE(sat) PNP Transistor ON Semiconductor
NSS12200LT1G Low VCE(sat) PNP Transistor ON Semiconductor

Other Datasheets by Nichia Corporation

Part Number Description
NSSA146AT AMBER LED
NSSB064AT-N2 LED
NSSB100BT BLUE LED
NSSB146AT BLUE LED
NSSB146AT-N3 LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

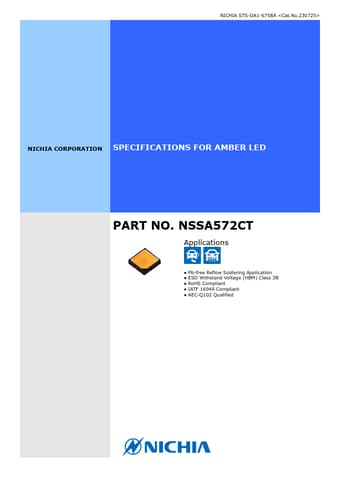

NICHIA STS-DA1-6758A NICHIA CORPORATION SPECIFICATIONS FOR AMBER LED PART NO. NSSA572CT Applications ● Pb-free Reflow Soldering Application ● ESD Withstand Voltage (HBM) Class 3B ● RoHS Compliant ● IATF 16949 Compliant ● AEC-Q102 Qualified SPECIFICATIONS NICHIA STS-DA1-6758A (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 300 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR 85 Power Dissipation PD 650 Operating Temperature Topr -40~125 Storage Temperature Tstg -40~125 Junction Temperature TJ 150 * Absolute Maximum Ratings at TJ=25°C. * IFP conditions with pulse width ≤10ms and duty cycle ≤10%.
