NJSW172AT - WHITE LED

Description

1 2.7 Package Materials Encapsulating Resin Materials Electrodes Materials Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated Weight 0.024g (TYP) Cathode 0.5 Anode 2.7 K A Protection Device 4 SOLDERING NICHIA STS-DA1-4102C Recommende

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJSW172T WHITE LED NICHIA CORPORATION
NJSW107T LED NICHIA CORPORATION
NJSW036AT LED NICHIA CORPORATION
NJSW036LT LED NICHIA CORPORATION
NJSW072T LED NICHIA CORPORATION

Other Datasheets by Nichia Corporation

Part Number Description
NJSW172CT WHITE LED
NJSW170CT WHITE LED
NJSW170FT WHITE LED
NJSW170GT WHITE LED
NJSW123GT WHITE LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

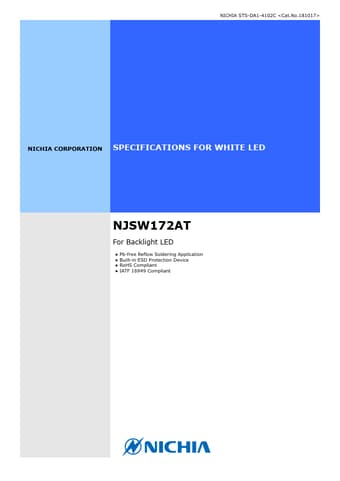

NICHIA STS-DA1-4102C NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NJSW172AT For Backlight LED ● Pb-free Reflow Soldering Application ● Built-in ESD Protection Device ● RoHS Compliant ● IATF 16949 Compliant SPECIFICATIONS NICHIA STS-DA1-4102C (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 450 Pulse Forward Current IFP 900 Allowable Reverse Current IR 85 Power Dissipation PD 1.55 Operating Temperature Topr -40~125 Storage Temperature Tstg -40~125 Junction Temperature TJ 150 * Absolute Maximum Ratings at TS=25°C. * IFP conditions with pulse width ≤10ms and duty cycle ≤10%.
