NJSW170FT - WHITE LED

Nichia Corporation

General Description

Ceramics Phosphor Ceramics Encapsulating Resin Materials Electrodes Materials Weight Silicone Resin Au-plated 0.0045g(TYP)

。 Dimensions do not include mold flash.

back electrode to the surface of emitting area.

📥 Download Datasheet

NJSW170FT white led by Nichia Corporation - Datasheet Preview

Datasheet Details

Part number	NJSW170FT
Manufacturer	Nichia Corporation
File Size	367.87 KB
Description	WHITE LED
Datasheet	NJSW170FT Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NJSW172T	WHITE LED	NICHIA CORPORATION
NJSW107T	LED	NICHIA CORPORATION
NJSW036AT	LED	NICHIA CORPORATION
NJSW036LT	LED	NICHIA CORPORATION
NJSW072T	LED	NICHIA CORPORATION

Other Datasheets by Nichia Corporation

Part Number	Description
NJSW170CT	WHITE LED
NJSW170GT	WHITE LED
NJSW172AT	WHITE LED
NJSW172CT	WHITE LED
NJSW123GT	WHITE LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

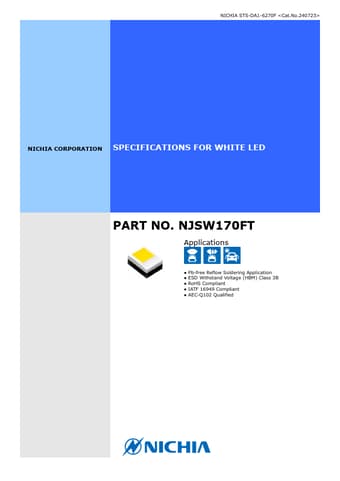

NICHIA STS-DA1-6270F NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED PART NO. NJSW170FT Applications ● Pb-free Reflow Soldering Application ● ESD Withstand Voltage (HBM) Class 3B ● RoHS Compliant ● IATF 16949 Compliant ● AEC-Q102 Qualified SPECIFICATIONS NICHIA STS-DA1-6270F (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 800 Pulse Forward Current IFP 2000 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR Power Dissipation PD 85 2.87 Operating Temperature Topr -40~125 Storage Temperature Tstg -40~125 Junction Temperature TJ 150 * Absolute Maximum Ratings at TJ=25°C. * HBM ESD Component Classification Level of the LEDs: Class 3B For more details, see ANSI/ESDA/JEDEC JS-001.
