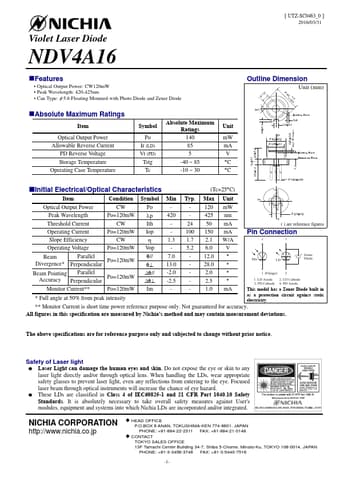

NDV4A16 - Violet Laser Diode

NICHIA

Datasheet Details

r>.
Optical Output Power: CW120mW.
Peak Wavelength: 420-425nm.
Can Type:5.6 Floating Mounted with Photo Diode and Zener Diode .
Absolute Maximum Ratings  Item Symbol Absolute Maximum Ratings Unit Optical Output Power Po 140 mW Allowable Reverse Current Ir (LD) 85 mA PD Reverse Voltage Vr (PD) 5 V Storage Temperature Tstg -40 ~ 85 C Operating Case Temperature Tc -10 ~ 30 C 1.2±0.1 Outline Dimension Unit (mm) (Φ 1.6) 5.6 + -0 0.03.
