NAZK101M16V6.3X8NBF - Surface Mount Aluminum Electrolytic Capacitors

Download the NAZK101M16V6.3X8NBF datasheet PDF (NAZK220M6.3V4X6.1NBF included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount aluminum electrolytic capacitors.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NAZK220M6.3V4X6.1NBF-NIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NAZK101M16V6.3X8NBF
Manufacturer NIC
File Size 193.34 KB
Description Surface Mount Aluminum Electrolytic Capacitors
Datasheet download datasheet NAZK101M16V6.3X8NBF Datasheet

📁 Similar Datasheet

  • NAZK - Surface Mount Aluminum Electrolytic Capacitors (NIC-Components)
  • NAZT - Surface Mount Aluminum Electrolytic Capacitors (NIC-Components)
  • NAZU - Surface Mount Aluminum Electrolytic Capacitors (NIC-Components)
Other Datasheets by NIC

Full PDF Text Transcription

Click to expand full text

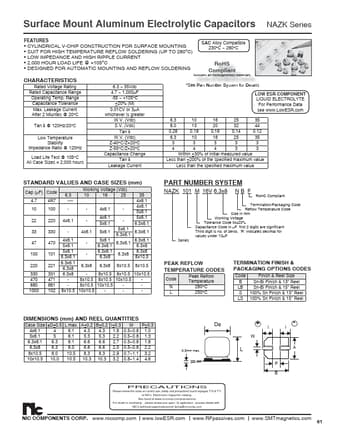

Surface Mount Aluminum Electrolytic Capacitors FEATURES • • • • • CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING SUIT FOR HIGH TEMPERATURE REFLOW SOLDERING (UP TO 260°C) LOW IMPEDANCE AND HIGH RIPPLE CURRENT 2,000 HOUR LOAD LIFE @ +105°C DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING SAC Alloy Compatible 230°C ~ 260°C NAZK Series CHARACTERISTICS Rated Voltage Rating Rated Capacitance Range Operating Temp. Range Capacitance Tolerance Max. Leakage Current After 2 Miuntes @ 20°C Tan δ @ 120Hz/20°C Low Temperature Stability Impedance Ratio @ 120Hz Load Life Test @ 105°C All Case Sizes = 2,000 hours 6.3 ~ 35Vdc 4.7 ~ 1,000μF -55 ~ +105°C ±20% (M) 0.01CV or 3μA whichever is greater W.V. (Vdc) S.V. (Vdc) Tan δ W.V.
