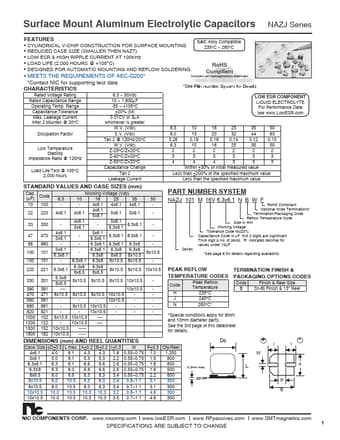

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• • • • • CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING REDUCED CASE SIZE (SMALLER THEN NAZT) LOW ESR & HIGH RIPPLE CURRENT AT 100KHz LOAD LIFE (2,000 HOURS @ +105°C) DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
SAC Alloy Compatible 235°C ~ 260°C
NAZJ Series
• MEETS THE REQUIREMENTS OF AEC-Q200* *Contact NIC for supporting test data CHARACTERISTICS
Rated Voltage Rating Rated Capacitance Range Operating Temp. Range Capacitance Tolerance Max. Leakage Current After 2 Miuntes @ 20°C Dissipation Factor Low Temperature Stability Impedance Ratio @ 120Hz Load Life Test @ 105°C 2,000 hours 6.3 ~ 50Vdc 10 ~ 1,800μF -55 ~ +105°C ±20% (M) 0.01CV or 3μA whichever is greater W.V. (Vdc) S.V. (Vdc) Tan δ @ 120Hz/20°C W.V.
NAZJ221M10V8X6.5NBF Datasheet
