NPMH0806CM2R2TR180F - Surface Mount Power Inductor

Download the NPMH0806CM2R2TR180F datasheet PDF (NPMH0603BMR24TR260F included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount power inductor.

Features

  • SIZES 0603, 0805, 0806, 1008 & 1210 SIZES.
  • HIGH.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NPMH0603BMR24TR260F-NICCOMPONENTS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NPMH0806CM2R2TR180F
Manufacturer NIC COMPONENTS
File Size 1.25 MB
Description Surface Mount Power Inductor
Datasheet download datasheet NPMH0806CM2R2TR180F Datasheet

📁 Similar Datasheet

Other Datasheets by NIC COMPONENTS

Full PDF Text Transcription

Click to expand full text

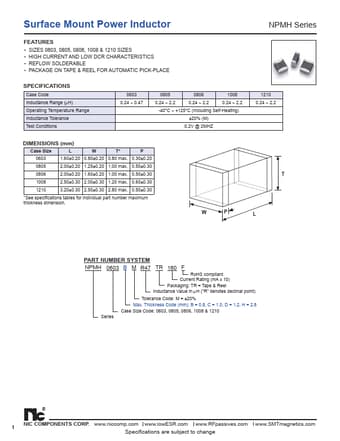

Surface Mount Power Inductor FEATURES • SIZES 0603, 0805, 0806, 1008 & 1210 SIZES • HIGH CURRENT AND LOW DCR CHARACTERISTICS • REFLOW SOLDERABLE • PACKAGE ON TAPE & REEL FOR AUTOMATIC PICK-PLACE SPECIFICATIONS Case Code Inductance Range (μH) Operating Temperature Range Inductance Tolerance Test Conditions 0603 0.24 ~ 0.47 0805 0806 1008 0.24 ~ 2.2 0.24 ~ 2.2 0.24 ~ 2.2 -40°C ~ +125°C (Including Self-Heating) ±20% (M) 0.2V @ 2MHZ NPMH Series 1210 0.24 ~ 2.2 DIMENSIONS (mm) Case Size L W T* P 0603 1.60±0.20 0.80±0.20 0.80 max. 0.30±0.20 0805 2.00±0.20 1.25±0.20 1.00 max. 0.50±0.30 0806 2.00±0.20 1.60±0.20 1.00 max. 0.50±0.30 1008 2.50±0.30 2.00±0.30 1.20 max. 0.60±0.30 1210 3.20±0.30 2.50±0.30 2.80 max. 0.50±0.
