SJ-2870 - DPECL

Name: SJ-2870
SKU: SJ-2870-561305

NEL

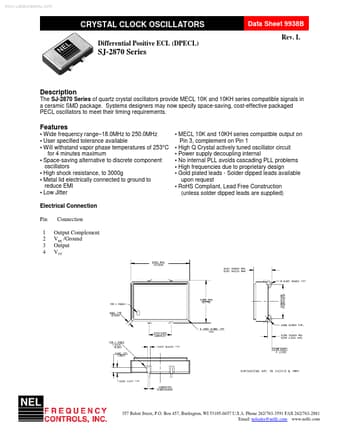

The SJ-2870 by NEL is a DPECL. Below is the official datasheet preview.

Datasheet Details

Part number	SJ-2870
Manufacturer	NEL
File Size	288.98 KB
Description	DPECL
Datasheet	SJ-2870_NEL.pdf
Additional preview pages of the SJ-2870 datasheet.

The SJ-2870 Series of quartz crystal oscillators provide MECL 10K and 10KH series compatible signals in a ceramic SMD package.

Wide frequency range.
18.0MHz to 250.0MHz.
User specified tolerance available.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 3000g.
Metal lid electrically connected to ground to reduce EMI.
Low Jitter Electrical Connection Pin 1 2 3 4 Connection Output Complement VEE /Ground Output VCC.
MECL 10K and 10KH se.
