SG-XA3XXXX - HF/UHF SMD TCVCXO

NEL

The SG-XA3XXXX by NEL is a HF/UHF SMD TCVCXO. Below is the official datasheet preview.

📥 Download Datasheet

SG-XA3XXXX HF/UHF SMD TCVCXO by NEL - Datasheet Preview — Official preview page of the **SG-XA3XXXX** HF/UHF SMD TCVCXO datasheet (NEL).

Datasheet Details

Part number	SG-XA3XXXX
Manufacturer	NEL
File Size	189.02 KB
Description	HF/UHF SMD TCVCXO
Datasheet	SG-XA3XXXX_NEL.pdf

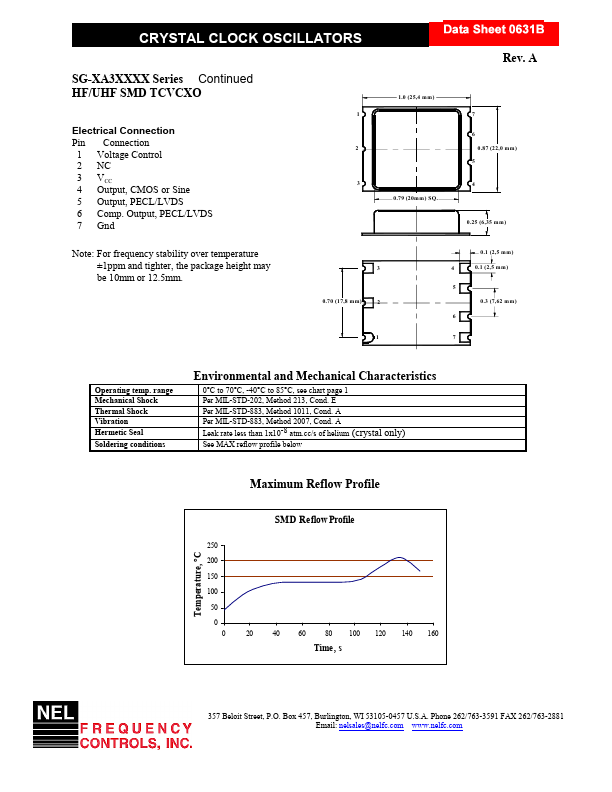

Additional preview pages of the SG-XA3XXXX datasheet.

SG-XA3XXXX Product details

Description

The SG-XA3XXXX Series of SMD temperature compensated, voltage controlled crystal oscillators (TCVCXO) provides High and Ultra High Frequency with excellent temperature stability, extremely low phase noise and jitter with variety of different output types in a small surface mount FR4 based package.

Features

Ultra High Frequency - up to 1GHz.
Small, Low Profile SMD Package.
Very Low Phase Jitter and Phase Noise.
Excellent Frequency Stability.
CMOS, Sine-wave, Differential PECL or LVDS outputs available.
Stratum 3 available Creating a Part Number SG - X A3 X X X X - FREQ Package Code SG 7 pad 1.0"x0.87" SMD Input Voltage 0 5.0V±5% A 3.3V±5% TCXO/TCVCXO Option T No V. Control V With V Control Output Type C CMOS P PECL S Sine-wave L LVDS Temp Freq.
