HS-1210, HS-1200 (HS-1200 / HS-1210) CRYSTAL CLOCK OSCILLATORS

HS-1210 Description

www.DataSheet4U.com CRYSTAL CLOCK OSCILLATORS TTL Compatible Enable/Disable Data Sheet 8706A Rev.M HS-1200/1210 Series .
The HS-1200/1210 Series of quartz crystal oscillators provide enable/disable 3-state TTL compatible signals for bus connected systems.

HS-1210 Features

* Wide frequency range
* 0.5MHz to 36MHz
* User specified tolerance available
* Will withstand vapor phase temperatures of 253°C for 4 minutes maximum
* Space-saving alternative to discrete component oscillators
* High shock resistance, to 3000g

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-1210, HS-1200. Please refer to the document for exact specifications by model.

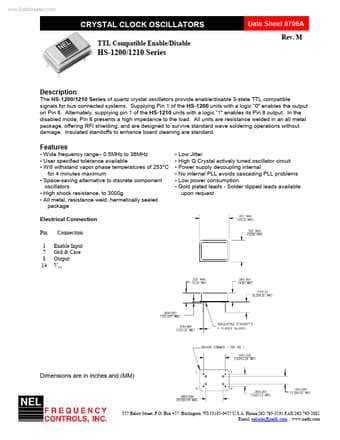

datasheet Preview Page 2

Datasheet Details

Part number
HS-1210, HS-1200
Manufacturer
NEL
File Size
386.48 KB
Datasheet
HS-1200_NEL.pdf
Description
(HS-1200 / HS-1210) CRYSTAL CLOCK OSCILLATORS
Note
This datasheet PDF includes multiple part numbers: HS-1210, HS-1200.
Please refer to the document for exact specifications by model.
