The UPG2121TB by NEC is a L-BAND UP/DOWN CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

UPG2121TB L-BAND UP/DOWN CONVERTER by NEC - Datasheet Preview — Official preview page of the UPG2121TB L-BAND UP/DOWN CONVERTER datasheet (NEC).

Datasheet Details

Part number	UPG2121TB
Manufacturer	NEC
File Size	60.13 KB
Description	L-BAND UP/DOWN CONVERTER
Datasheet	UPG2121TB_NEC.pdf
Additional preview pages of the UPG2121TB datasheet.

UPG2121TB Product details

Description

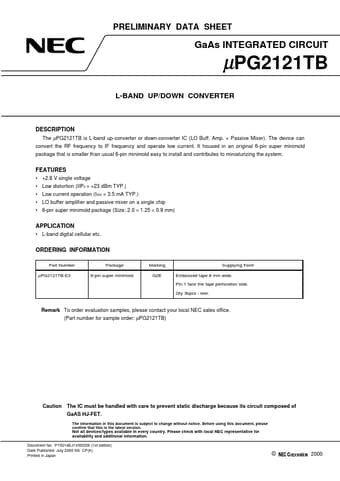

The µPG2121TB is L-band up-converter or down-converter IC (LO Buff.

Features

+2.8 V single voltage.
Low distortion (IIP3 = +23 dBm TYP. ).
Low current operation (IDD = 3.5 mA TYP. ).
LO buffer amplifier and passive mixer on a single chip.
6-pin super minimold package (Size: 2.0 × 1.25 × 0.9 mm).
