UPD78F0034A - 8 Bit Single Chip Microcontroller

NEC

The UPD78F0034A by NEC is a 8 Bit Single Chip Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

UPD78F0034A 8 Bit Single Chip Microcontroller by NEC - Datasheet Preview — Official preview page of the **UPD78F0034A** 8 Bit Single Chip Microcontroller datasheet (NEC).

Datasheet Details

Part number	UPD78F0034A
Manufacturer	NEC
File Size	637.51 KB
Description	8 Bit Single Chip Microcontroller
Datasheet	UPD78F0034A_NEC.pdf

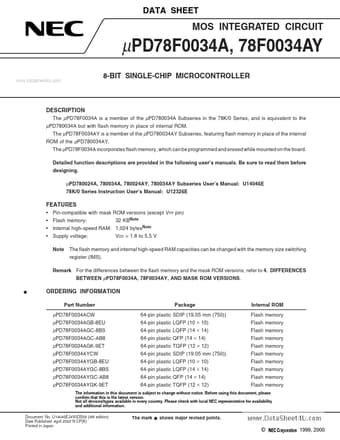

Additional preview pages of the UPD78F0034A datasheet.

UPD78F0034A Product details

Description

The µPD78F0034A is a member of the µPD780034A Subseries in the 78K/0 Series, and is equivalent to the µPD780034A but with flash memory in place of internal ROM.The µPD78F0034AY is a member of the µPD780034AY Subseries, featuring flash memory in place of the internal ROM of the µPD780034AY.The µPD78F0034A incorporates flash memory, which can be programmed and erased while mounted on the board.Detailed function descriptions are provided in the following user’s manuals.Be sure to read them bef

Features

Pin-compatible with mask ROM versions (except VPP pin).
Flash memory:.
Supply voltage: Note 32 KBNote VDD = 1.8 to 5.5 V.
Internal high-speed RAM: 1,024 bytesNote The flash memory and internal high-speed RAM capacities can be changed with the memory size switching register (IMS). Remark For the differences between the flash memory and the mask ROM versions, refer to 4.
